E3V - K (hermética)

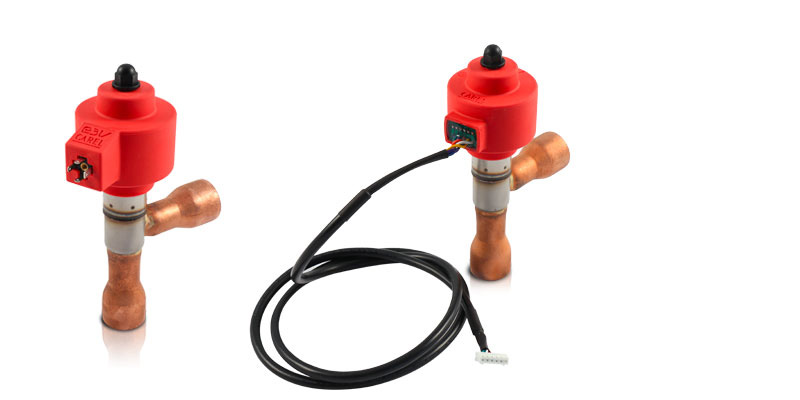

The CAREL E3V-K electronic expansion valves for medium-capacity units combine reliability and exceptional control precision, guaranteed by the equipercentile flow profile and 15 mm travel without axial rotation.

The wide range available covers all applications for cooling capacities of up to 180 kW. The possibility of operation with two-way fluid flow is especially useful when the valve is used for heat pump applications, permitting a simplified refrigerant circuit layout and thus lower system costs.

The E3V-K valve is available in sizes from 35 to 65, and can be used with refrigerants with a maximum temperature of 100 °C.

The E3V-K valve is made with high-quality laser welding and quality materials such as AISI 316. It is supplied already assembled and ready to use, to simplify and reduce the costs of system installation and commissioning.
