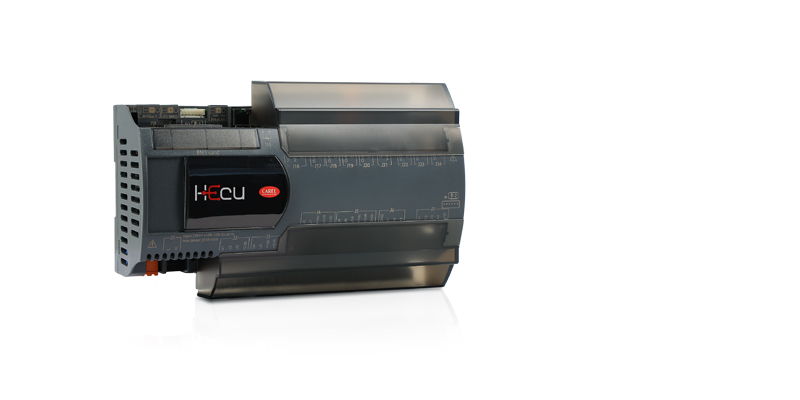

Hecu
Características generales
Hecu is the High Efficiency Condensing Unit proposed by CAREL for condensing units with traditional HFC refrigerants, designed specifically for convenience stores.
By exploiting DC inverter technology, Hecu sistema offers true modulation of cooling capacity, thus achieving low energy consumption, especially at part loads. The high performance achievable with CO2 both allows compliance with the Eco-Design directive on energy performance, and exceeds the limits set by the F-Gas Regulation in condensing unit applications.
Hecu sistema stands out in the segment of small commercial refrigeration systems for real-time communication with the refrigeration units, allowing the implementation of advanced system optimisation logic, with dynamic set points and extremely stable control, ensuring perfect food preservation and thus reducing waste.
Features include:- Oil management with evaporator washing and speed boost functions
- Safe compressor control with Power+ functions
- constant modulation of cooling capacity based on demand from the cabinets
- simplified configuration using the Wizard procedure
- ease of use with clear and intuitive menus
CAREL supervisors can be used to monitor and optimise the operation of every system, prevent any malfunctions and plan maintenance, so as to guarantee a high service level.
-
Más
DC technology
The most efficient and widest range of modulation on the market (25-100% of capacity), scientifically tested in the field [ipertesto che rimanda a Fraunhofer case study]
Integration with cabinets
Constant communication for dynamic set points, minimum power consumption and stable temperatures.
Solid system reliability
Safe control of compressors with DC Power+ driver, specific functions for oil management.
Optimal food preservation
Continuous modulation of the compressor and EEV electronic valves ensures perfect temperature maintenance in the cabinets: +/- 0.3°C.
Local and remote supervision
Cloud-based management of the refrigeration systems with boss and RED digital services.
Integrated all-in-one management of cold rooms
DC Cella is the combination of Hecu + UltraCella that offers all the advantages of this synergy to ensure fast installation, ease of use and optimised performance.
Documentación
Technical
-
Manuals
* Entries are ordered by date
Código Descripción Idioma Fecha * Versión Código +0300023EN Descripción Hecu sistema: High efficiency condensing unit Idioma ENG Fecha 14/12/2021 Versión 1.2 Código +0300023IT Descripción Hecu sistema: High efficiency condensing unit Idioma ITA Fecha 14/12/2021 Versión 1.2 -
Technical Leaflets
* Entries are ordered by date
Código Descripción Idioma Fecha * Versión Código +050001890 Descripción HECU - SUCTION PIPE SIZING (multi-split confi guration) Idioma ENG Fecha 19/01/2021 Versión 1.2 Código +050001885 Descripción HECU - CONSIDERATIONS ABOUT OIL RETURN Idioma ENG Fecha 19/01/2021 Versión 1.1 Código +050001880 Descripción HECU - sistema requirements Idioma ENG Fecha 19/01/2021 Versión 1.2 Código +050001835 Descripción Hecu Tabella compressori DC disponibili / DC compressor availability table Idioma ENG ITA Fecha 27/08/2018 Versión 1.4 Código +050001830 Descripción Hecu - Controllo programmabile integrato / Programable built-in controller Idioma ENG ITA Fecha 09/04/2018 Versión 2.0
Commercial
-
Application Note
* Entries are ordered by date
Código Descripción Idioma Fecha * Versión Código +4000075IT Descripción Hecu sistema. Analisi comparativa delle tecnologie DC ed EEV in collaborazione con Fraunhofer ISE Idioma ITA Fecha 30/04/2020 Versión 1.1 Código +4000075EN Descripción Hecu Sistema: DC technology and EEV benchmarking case study in cooperation with Fraunhofer ISE Idioma ENG Fecha 30/04/2020 Versión 1.1 Código +4000062EN Descripción Condensing units: scenario in Europe Idioma ENG Fecha 28/09/2017 Versión 1.0 Código +4000028IT Descripción Hecu sistema La reale modulazione di capacità per C-Stores Idioma ITA Fecha 15/03/2016 Versión 1.0 Código +4000028EN Descripción Hecu sistema The real capacity modulation for C-Stores Idioma ENG Fecha 15/03/2016 Versión 1.0 -
Brochure
* Entries are ordered by date
Código Descripción Idioma Fecha * Versión Código +3000091IT Descripción HECU SISTEMA: La reale modulazione di capacità per C-Stores Idioma ITA Fecha 02/10/2014 Versión 1.0 Código +3000091JA Descripción HECU SISTEMA コンビニエンスストアにモジュレーション タイプの高効率コンデンシングユニット Idioma JAP Fecha 02/10/2014 Versión 1.0 Código +3000091EN Descripción HECU SISTEMA: The real capacity modulation for C-Stores Idioma ENG Fecha 02/10/2014 Versión 1.0 -
Success Story
* Entries are ordered by date
Código Descripción Idioma Fecha * Versión Código +4000055ZH Descripción Hecu sistema 不同技术间的实时对比 Idioma CHI Fecha 19/06/2017 Versión 1.1 Código +4000055EN Descripción Hecu sistema Real comparison between different technologies Idioma ENG Fecha 19/06/2017 Versión 1.1 Código +4000046EN Descripción Real energy consumption comparison with Hecu sistema in Thailand 27.5% energy saving compared to the previous traditional installation Idioma ENG Fecha 28/09/2016 Versión 1.0 -
White Paper
* Entries are ordered by date
Código Descripción Idioma Fecha * Versión Código +4000058EN Descripción Types of electrical protection when using inverters. Use of RCDs in diff erent types of networks Idioma ENG Fecha 21/12/2017 Versión 1.0 Código +4000058IT Descripción Tipi di protezione elettrica quando si usano inverter. Uso degli RCDs nelle diverse tipologie di rete. Idioma ITA Fecha 21/12/2017 Versión 1.0
Images
-
High resolution images
* Entries are ordered by date
Código Descripción Idioma Fecha * Versión Código PH14LHU302-pLD-PRO-Hecu Descripción Hecu-CAREL-Food Retail-Condensing units Idioma ALL Fecha 03/09/2021 Versión R.0 Código PH14LHU301-pGD1-pRack-Hecu Descripción Hecu-CAREL-Food Retail-Condensing units Idioma ALL Fecha 03/09/2021 Versión R.0 Código PH20LHU301-Hecu-controller Descripción Hecu-CAREL-Food Retail-Condensing units Idioma ALL Fecha 03/09/2021 Versión R.0 Código PH20LHU302-Hecu-platform Descripción Hecu-CAREL-Food Retail-Condensing units Idioma ALL Fecha 03/09/2021 Versión R.0
