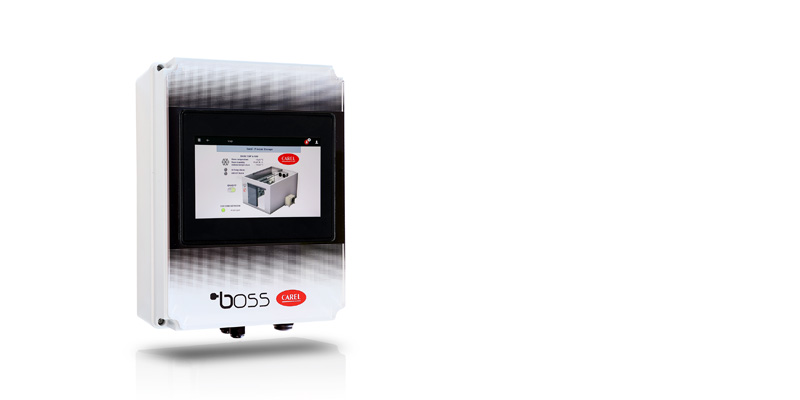

boss micro panel

Características generales
boss micro panel completes the boss family with a range of plug & play solutions for systems with up to 30 devices, including both the supervisor hardware and a built-in 7” touch display.
The solution is ready to be installed without needing any additional wiring or assembly, while the embedded Wi-Fi hotspot can be used to connect locally to the boss device for initial setup and other service activities, including from a PC or smartphone.
The built-in touch display makes boss micro panel especially interesting for all refrigeration and HVAC applications where the end user needs to monitor system status at a glance, and act promptly to resolve any critical issues.
boss micro panel is available in various versions for managing systems with up to 15 or 30 connected devices. The range also differs according to the types of built-in connectivity:
- Ethernet only;
- Ethernet + Wi-Fi;
- Ethernet + Wi-Fi + 4G.
The additional space available for a relay module, for example to be connected to an alarm signalling device, makes the solution even more flexible.
Part number table
Part number Name Supervisor hardware Connectivity BMBSTP7RP0 wired pocket boss-micro (15 devices, 150 varibles) Ethernet BMBSTP7FP0 Wi-Fi pocket Ethernet, Wi-Fi BMBSTP7MP0 Wi-Fi & 4G pocket Ethernet, Wi-Fi, 4G BMBSEP7RP0 wired enhanced boss-micro enhanced (30 devices, 300 varibles) Ethernet BMBSEP7FP0 Wi-Fi enhanced Ethernet, Wi-Fi BMBSEP7MP0 Wi-Fi & 4G enhanced Ethernet, Wi-Fi, 4G -
Más
System under control
Continuous monitoring of the status of connected devices, available from the built-in display; local and remote alarm management and parameter settings.
Plug & play
Simplified wall mounting, configuration wizard and space available for the CAREL relay module.
Independent connection
The built-in 4G modem can be used to receive alarms (SMS/email/Telegram) without relying on the local network.
Family feeling
boss micro panel retains all the monitoring and system optimisation features that defined the boss family supervisors.
CE marked product
Regulatory compliance guarantees electrical safety for operators and for the environment where the product is installed, as well as no interference with other electronic or radio devices in the vicinity.
Documentación
Technical
-
Certificates
* Entries are ordered by date
Código Descripción Idioma Fecha * Versión Código CE Declaration for micro-boss Panel Descripción CE Declaration for micro-boss Panel Idioma ENG Fecha 06/03/2025 Versión R.0 -
Manuals
* Entries are ordered by date
Código Descripción Idioma Fecha * Versión Código +0300088PT Descripción boss Supervisor local para sistemas de médias e grandes dimensões Idioma POR Fecha 06/09/2022 Versión 1.4 Código +0300088DE Descripción boss: Lokale Überwachungslösung für mittelgroße und große Anlagen Idioma GER Fecha 06/09/2022 Versión 1.4 Código +0300088EN Descripción boss: Local supervisor for medium and large systems Idioma ENG Fecha 06/09/2022 Versión 1.4 Código +0300088ES Descripción boss: Supervisor local para sistemas de tamaño medio y grande Idioma SPA Fecha 06/09/2022 Versión 1.4 Código +0300088FR Descripción boss: Superviseur local pour les systèmes de taille moyenne et grande Idioma FRE Fecha 06/09/2022 Versión 1.4 Código +0300088IT Descripción boss: Supervisore locale per sistemi di medie e grandi dimensioni Idioma ITA Fecha 06/09/2022 Versión 1.4 -
Quick Guide
* Entries are ordered by date
Código Descripción Idioma Fecha * Versión Código +040000260 Descripción boss - Guida rapida - User manual - Mode d’emploi - Technisches Handbuch - Manual del usuario - Краткое руководство Idioma ENG FIN FRE GER ITA RUS SPA Fecha 23/09/2022 Versión 1.2 -
Technical Leaflets
* Entries are ordered by date
Código Descripción Idioma Fecha * Versión Código +0500185ML Descripción BOSS-MICRO PANEL START GUIDE - Supervisory solution for small and medium installations Idioma ENG FRE GER ITA Fecha 12/02/2025 Versión 1.0 Código +0500186ML Descripción BOSS-MICRO PANEL - MECHANICAL INSTALLATION Idioma ALL Fecha 12/02/2025 Versión 1.0 Código +050003572 Descripción Modulo relè per boss mini e boss micro Idioma ENG ITA Fecha 08/11/2024 Versión 1.2 Código +0500152IE Descripción μboss: Istruzioni di montaggio / Assembly procedure Idioma ENG ITA Fecha 06/07/2023 Versión 1.4 Código +0500191IE Descripción Best practices per messa in sicurezza boss range - Best security practices for the boss range Idioma ENG FRE GER ITA POR SPA Fecha 04/08/2022 Versión 1.0
Commercial
-
Brochure
* Entries are ordered by date
Código Descripción Idioma Fecha * Versión Código +3000268PT Descripción boss micro panel - Soluções plug&play de monitoramento com tela integrada para sistemas até 30 dispositivos Idioma POR Fecha 14/03/2025 Versión 1.0 Código +3000268ES Descripción boss micro panel - Soluciones de monitorización plug&play con pantalla integrada para instalaciones de hasta 30 dispositivos Idioma SPA Fecha 14/03/2025 Versión 1.0 Código +3000268IT Descripción boss micro panel - Soluzioni plug&play di monitoraggio con display integrato per impianti fino a 30 dispositivi Idioma ITA Fecha 14/03/2025 Versión 1.0 Código +3000268EN Descripción boss micro panel - Plug&play monitoring solutions with built-in display for systems with up to 30 devices Idioma ENG Fecha 14/03/2025 Versión 1.0
Images
-
High resolution images
* Entries are ordered by date
Código Descripción Idioma Fecha * Versión Código PH25LBMPS2-boss-micro-panel-new Descripción CAREL boss micro panel - Local Monitoring systems - Remote management and monitoring systems Idioma ALL Fecha 19/03/2025 Versión R.0 Código PH25LBM302-boss-micro-panel-new-detail Descripción CAREL boss micro panel - Local Monitoring systems - Remote management and monitoring systems Idioma ALL Fecha 19/03/2025 Versión R.0 Código PH25LBM301-boss-micro-panel-new Descripción CAREL boss micro panel - Local Monitoring systems - Remote management and monitoring systems Idioma ALL Fecha 19/03/2025 Versión R.0
