c.pCOe
Características generales

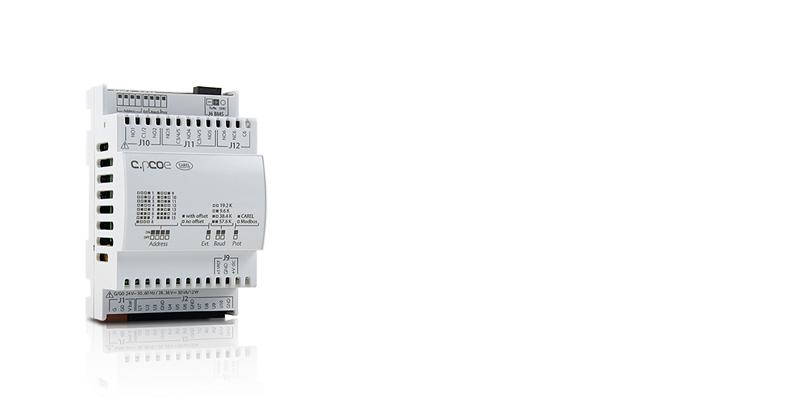

c.pCOe is the I/O expansion card, built using with CAREL-proprietary microchip, that allows considerable flexibility in the configuration of the various pins, both as inputs (support for passive NTC, PTC, PT1000 probes, digital inputs and active voltage and current probes) and as outputs (0-10 V, PWM).
The c.pCOe card is available in 2 versions:
- Basic version, with a total of 16 I/O channels available, 10 of which can be configured as analogue inputs or outputs, and 6 relays.
- Enhanced version, same I/O configuration as the basic version, with the addition of a built-in driver for managing a CAREL unipolar electronic expansion valve.
-
Más
- DIN rail mounting (4 DIN)
- 10 universal channels (inputs/outputs)
- 6 relays
- 24 Vac/Vdc power supply
- Integrated RS485 port
- c.Suite and 1tool libraries for rapid integration
- Built-in unipolar EXV driver (Enhanced version)
- Ultracap module support (Enhanced version)
Documentación
Technical
-
2D/3D drawings
* Entries are ordered by date
Código Descripción Idioma Fecha * Versión Código 2d-3d cpCOe Descripción 2D-3D drawings Idioma ALL Fecha 01/12/2016 Versión R0 -
Manuals
* Entries are ordered by date
Código Descripción Idioma Fecha * Versión Código +0300057EN Descripción c.pCO Programmable Controller Idioma ENG Fecha 20/06/2023 Versión 1.6 -
Technical Leaflets
* Entries are ordered by date
Código Descripción Idioma Fecha * Versión Código +0500059IE Descripción P+E*: c.pCOe – Espansione controllo programmabile / Programmable controller expansion Idioma ENG ITA Fecha 14/02/2022 Versión 1.4 Código +0500059FR Descripción P+E*: c.pCOe – Expansion commande programmable / Programmable controller expansion Idioma ENG FRE Fecha 14/02/2022 Versión 1.4
Images
-
High resolution images
* Entries are ordered by date
Código Descripción Idioma Fecha * Versión Código PH16LP+305-cpCOe-enhanced Descripción c.pCOe-CAREL-Programmable Controls-I/O expansions Idioma ALL Fecha 02/09/2021 Versión R.0
