pCOe DI
Características generales

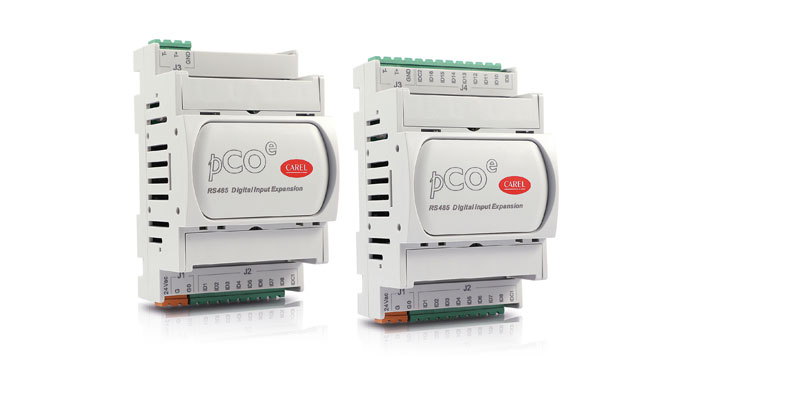

pCOe DI is the I/O expansion card developed by CAREL to extend the number of digital inputs in a solution. The expansion features both voltage-free and fast contact digital inputs.
The pCOe DI card is available in 2 versions:- Version with 8 digital inputs
- Version with 16 digital inputs
-
Más
- DIN rail mounting (4 DIN)
- Up to 16 digital inputs (voltage-free or fast contact)
- 24 Vac/Vdc power supply
- Integrated RS485 port
- Modbus protocol
Documentación
Technical
-
2D/3D drawings
* Entries are ordered by date
Código Descripción Idioma Fecha * Versión Código pCOE fast DI Descripción 2D-3D drawings Idioma ALL Fecha 08/04/2024 Versión R.0 -
Technical Leaflets
* Entries are ordered by date
Código Descripción Idioma Fecha * Versión Código +050003271 Descripción pCOE: I/O scheda di espansione UXPB******2** 24 Vac / I/O expansion board UXPB******2** 24 Vac Idioma ENG ITA Fecha 03/09/2021 Versión 1.3
Images
-
High resolution images
* Entries are ordered by date
Código Descripción Idioma Fecha * Versión Código PH21LPC301-pCOe-8 Descripción pCOe DI-CAREL-Programmable ControlsI-/O expansions Idioma ALL Fecha 02/09/2021 Versión R.0 Código PH21LPC302-pCOe-16 Descripción pCOe DI-CAREL-Programmable Controls-I/O expansions Idioma ALL Fecha 02/09/2021 Versión R.0
