µAria

UARA*
µAria
  • Características generales

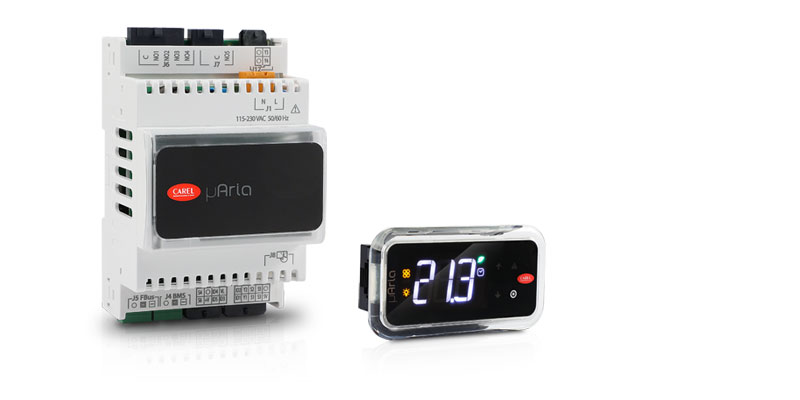

    µAria is the ready-to-use solution for managing residential air handling units with heat recovery.


    µAria is a parametric controller, designed to reduce time and costs from the design phase to the start-up phase. Its flexibility allows it to handle the entry level HRV compact machine range up to about 1000 m3/h.
    CAREL's knowledge in the field of air handling units ensures intelligent control logic, ensuring optimal operation of all devices.
    Multiple types of probes and sensors (temperature, humidity, CO2, VOC, etc.) can be managed, which measure the desired values and use them for the defined adjustment modes. This ensures a high level of comfort in the rooms served by the unit by controlling air quality and air exchange, while optimising energy performance.


    µAria offers an advanced user experience thanks to its standard Bluetooth and NFC wireless connectivity, in combination with the APPLICA App.
    APPLICA, which can be downloaded free of charge to smartphones from Google Play for Android or App store for iOs, makes it possible to fully configure the unit in a few simple steps thanks to the pre-loaded synoptics and configurations.
    Combined with the th-Tune terminal, the user can easily adjust temperature and humidity to achieve the desired environmental conditions.

  • Más

    Flexibility

    A single application designed to adapt to different unit layouts.

    Plug&play

    Easy configuration and start-up.

    • Pre-loaded configurations with customisation possibilities.
    • Manual configuration of all unit components.

    Connectivity

    • Wireless NFC and Bluetooth connection via CAREL App “APPLICA” for fast commissioning, diagnostics and maintenance of the unit with simple interface and synoptics.
    • Easy integration of both field components and higher-level supervisory or BMS systems, thanks to integrated Modbus RTU RS485 serial communication.

    Usability

    • Seven-segment, single-line LED display for improved usability of information.
    • Dedicated interface for quick access to variables and configurations, for use on Android and iOs smartphones.

    Air quality and hygiene

    • Room air quality control on CO2 setpoint and VoC.
    • Humidity control in the indoor environment.

    Energy efficiency

    • Intelligent device management based on minimum energy consumption.
    • Free cooling and Free heating.
    • Heat recovery.


Documentación

Technical

  • 2D/3D drawings
    Código Descripción Idioma Fecha * Versión
    Código UARADE0001320

    Descripción 2D-3D drawings

    Idioma ALL

    Fecha 13/11/2024

    Versión R0

    Código UARAE00N01310

    Descripción 2D-3D drawings

    Idioma ALL

    Fecha 08/11/2024

    Versión R0

    Código UARAD00001370

    Descripción 2D-3D drawings

    Idioma ALL

    Fecha 07/10/2024

    Versión R0

  • Manuals
    Código Descripción Idioma Fecha * Versión
    Código +0300105IT

    Descripción μAria - Controllo per unità di ventilazione con recuperatore di calore

    Idioma ITA

    Fecha 20/08/2024

    Versión 1.4

    Código +0300105EN

    Descripción μAria - Controller for ventilation units with heat recovery

    Idioma ENG

    Fecha 20/08/2024

    Versión 1.4

    Código +0300105PT

    Descripción μAria Controle para unidades de ventilação com recuperador de calor

    Idioma POR

    Fecha 20/08/2024

    Versión 1.4

  • Technical Leaflets
    Código Descripción Idioma Fecha * Versión
    Código +0500143IE

    Descripción μARIA product technical leaflet - Controllo elettronico per unità di trattamento aria e ventilazione / Electronic control for air handling and ventilation unit

    Idioma ENG  ITA

    Fecha 07/05/2025

    Versión 1.8


Commercial

  • Brochure
    Código Descripción Idioma Fecha * Versión
    Código +3000219IT

    Descripción µAria - Controllo per unità di ventilazione con recuperatore di calore

    Idioma ITA

    Fecha 20/09/2024

    Versión 1.1

    Código +3000219EN

    Descripción µAria - Controller for ventilation units with heat recovery

    Idioma ENG

    Fecha 20/09/2024

    Versión 1.1

    Código +3000219ES

    Descripción µAria - Control para unidades de ventilación con recuperador de calor

    Idioma SPA

    Fecha 20/09/2024

    Versión 1.1


Images

  • High resolution images
    Código Descripción Idioma Fecha * Versión
    Código PH22LMA301-µAria-display

    Descripción CAREL µAria - Air Handling and Ventilation - HVAC control

    Idioma ALL

    Fecha 30/09/2022

    Versión R.0

    Código PH22LMA305-µAria-din-white

    Descripción CAREL µAria - Air Handling and Ventilation - HVAC control

    Idioma ALL

    Fecha 30/09/2022

    Versión R.0
